In this post, you would learn how to implement a ArcGuage with value displayed with percentage (%) using Fusion Widget Pro - Angular Gauge chart.
Problem Statement :
Convert fusion widget "Angular Gauge" chart as "Arc Gauge" with percentage(%) value displayed Or say ArcGauge with progress from 1 to 100%.
NOTE : Tap on to the images to get the original view of screenshots taken.
Report Design:
Key Implementations:
1) Max and min values : 1 to 100

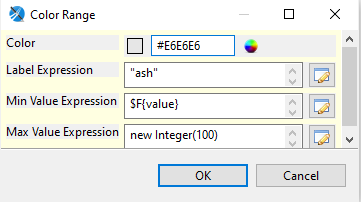

Once the color ranges applied the graph auto takes the range from 1 to 100 scale
2) Remove Dial & Pointer

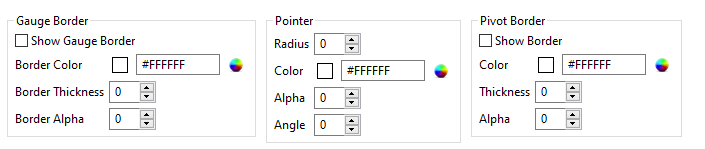

Pointer : Give everything white colored as below to get rid of circular pointer
Pointer : Give everything white colored as below to get rid of circular pointer

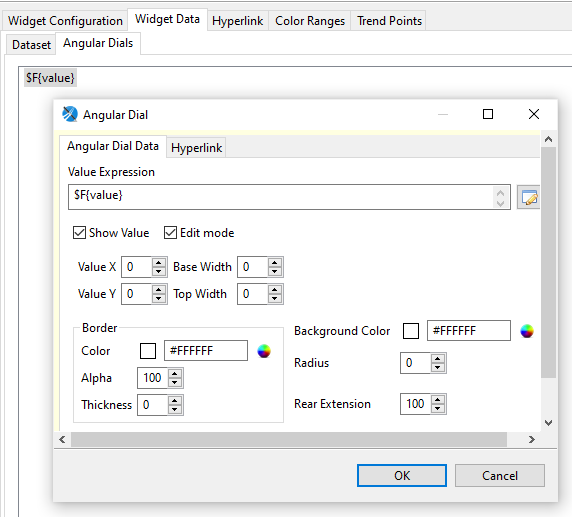

Dial: Give properties as shown below to get rid of Dial , Navigation : Widget Date > Anular Dials
3) Show Value , Font Size , Percentage Symbol
Show value: In the advaned properties add showValue=true (although you would have checkbox in the widget general properites.
Show value: In the advaned properties add showValue=true (although you would have checkbox in the widget general properites.
Font Size: As shown in below image , navigate to "Widget Configuration"> Common Options > Apply the size and color for value to be displayed as percentage
JRXML : Developed using 7.8.0 professional version of Studio, it should work in same or higher versions.
